Dzus Fasteners and Rails
Dzus rail is the standard mounting method in most military and many commercial helicopters (especially European manufacturers).
Flat or Right Angle bar is mounted to the aircraft instrument panel or console structure. The hole pitch is approx 32 per foot (approx 3/8 inch centres). The Fasteners are inserted into the equipment or blanking panel using a special tool (or they can be installed successfully with the tool). To lock, the fasteners require a push in (about 1/16 inch) and a 1/4 turn clockwise. Once locked, they can't vibrate loose and the spring pressure keeps everything nice and tight.
The fasteners are available in a range of sizes (to accommodate different panel thickness) and finishes (Cadmium plated and Black Anodized are the most common)
The Rail can be cut to any length.
|
|

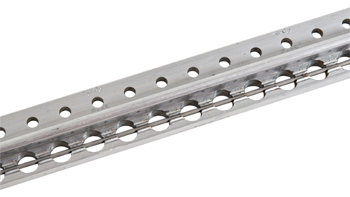

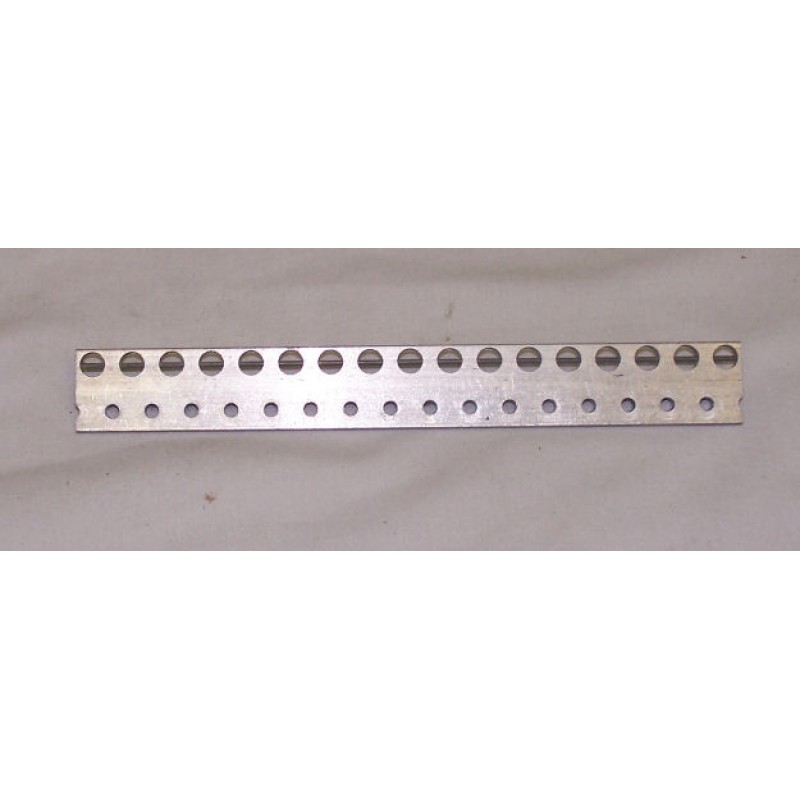

PR35 Flat Bar |

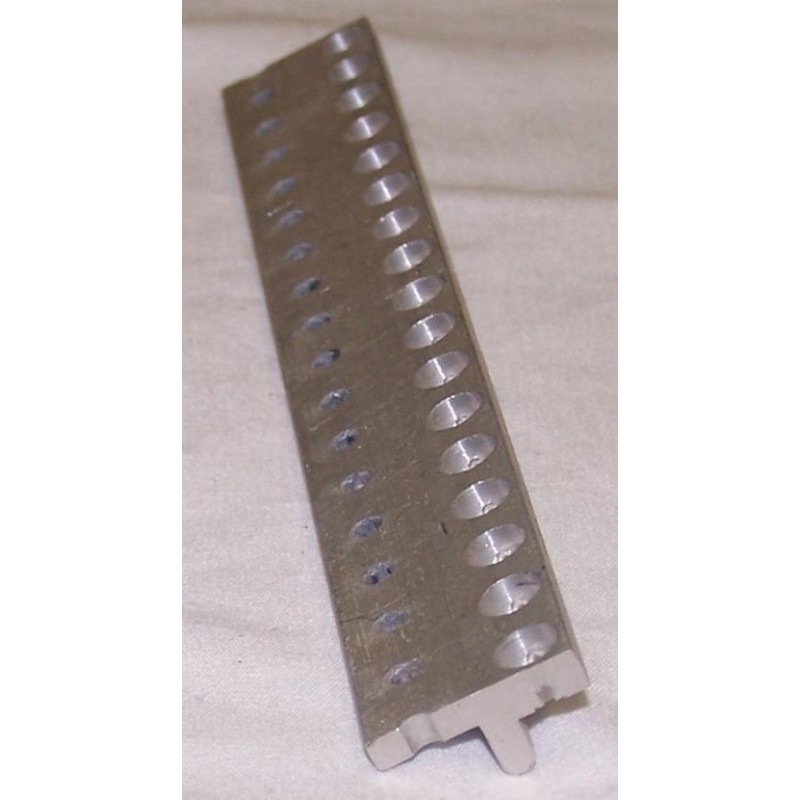

PR35 Right Angle Bar |
|
|

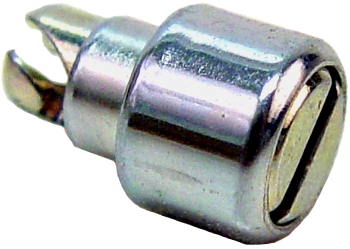

Z3CT Fastener |
PT35A Insertion Tool |
We carry both versions of the rail in stock and many of the fastener variations. We can order in anything we don't have. Typical lead time is about 7 days.
