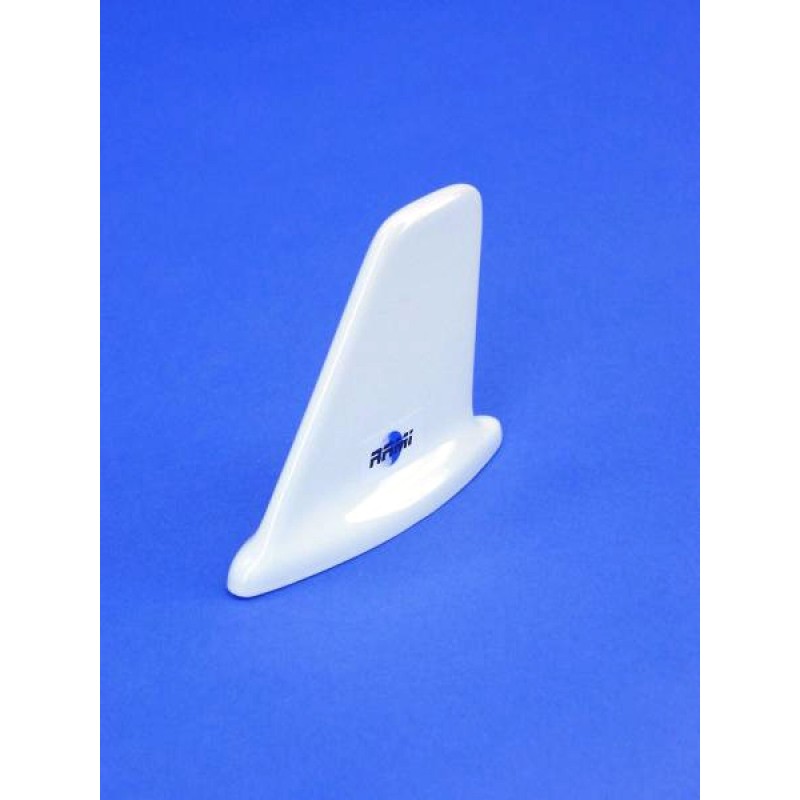

Rami AV-74 L-Band (Transponder/DME) Antenna
Rami AV-74 L-Band (Transponder/DME) Antenna
The AV-74 is a broadband blade type antenna for transponder or DME application.
The antenna housing is constructed of an acrylonitrile-styrene-acrylic (ASA) shell. The white color allows maximum performance without losses due to color pigments or unseen dirt. The antenna is supplied with cellular neoprene mounting pad and hardware.
The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.09 lbs @ 250 mph. This antenna is a direct replacement for the CI-105.
Specifications:
Application: Transponder/DME/ADS-B
Frequency: 960 – 1220 MHz
Impedance: 50 Ohms Nominal
VSWR: 1.5:1 Maximum
Polarization: Vertical
Pattern: Omni-Directional
Connector: “BNC” Female
Max Height: 3.4″
Max. Weight: 0.2 lbs.
RF Power Capacity: 2.5 kW Peak
FAA TSO: C66c, C74c
Write a review
Your Name:Your Review: Note: HTML is not translated!
Rating: Bad Good
Enter the code in the box below:
Rami AV-22 Antenna Data Sheet Information
