David Clark Wireless DECT Mobile Intercom System

David Clark Wireless DECT Mobile Intercom System

Brand: David Clark

Product Code: Various
Availability: 7 - 10 Days

David Clark Wireless DECT Mobile Intercom System

Wireless Headset Communication Systems provide maximum freedom, mobility, and clear communication for mobile crews.  Typical applications include road works, construction and forestry.  Please give us a call to discuss your needs.

Range of up to 300 feet (line-of-sight) to and from the Gateway
Once linked to a Gateway, automatically reconnects on each power-up until purged from system ("strong link")
Up to 4 Belt Stations can be connected to the system Gateway
Marine-grade, water-tight enclosures and components
Audible voice prompts for link/purge status, out-of-range, low battery
Removable Li-Polymer battery (24 hours continual usage) for charging (3-4 hours)
Large PTT for link, radio PTT, VOX override
Power button with LED indicator for visual status of link, PTT and battery charge
Military-grade, twist-lock headset connector
Rubberized outer skin, black
360-degree rotational belt clip



Gateway: (All system will need one of these)

U9911 Controller Belt Station

Intercom-only mobile gateway. Connects to a Headset; acts as a relay for all audio between linked Belt Stations.




Wireless Module: (Up to 4 of these can be used with one gateway)

U9913

  • VOX for ICS to other belt stations
  • NO pilot communications

Typical use would be de-ice crew or wing walkers who need to talk to the tug driver, but not the pilot.




Headsets:  (Any of these headsets will work with any of the belt stations)

H9910

Dual-Ear, Over-The-Head style, provides maximum comfort and features mic-shield with snap/strap assembly for clear, hands-free communication in extreme high-noise environments.
  • Snap/strap assemblies secure the shielded microphone to user's mouth for hands-free communication
  • M87-type noise-canceling microphone, immersion-proof, mounted in noise-attenuating mic shield with PTT override
  • Dual volume controls on domes for preferred listening level
  • Undercut, Comfort-Gel Ear Seals
  • 4-chamber, air-flow pillow headpad
  • Certified NRR: 26 dB

H9930

Dual-Ear, Over-The-Head style, with boom-mic for use in high-noise environments. Provides maximum comfort and clear, reliable communications.
Model H9930

  • M87-type noise-canceling microphone, immersion-proof
  • Hybrid wire-flex boom assembly
  • Dual volume controls on domes for preferred listening level
  • Certified NRR: 23 dB

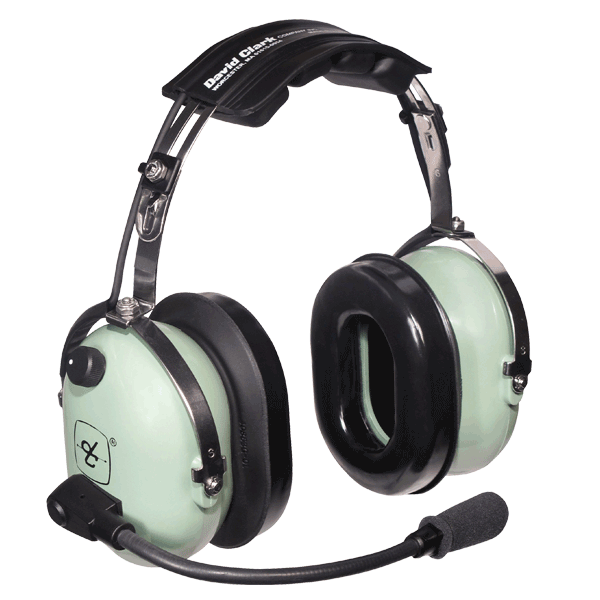

H9935

Dual-Ear, Over-The-Head style, with boom-mic optimized for airport ramp environments. Provides maximum comfort, noise-attenuation and clear, reliable communications.

  • M-2 dynamic microphone, water-resistant protection and superlative noise-cancelling
  • Over-molded flex boom assembly, non-rotating, for precise microphone positioning and rugged reliability
  • Dual volume controls, water-tight, for variable left/right gain setting capability
  • 6-foot extended coil cord with military-grade, 7-pin Belt Station connector
  • Passive noise attenuation rating: 26 dB





Accessories:

A99-14CRG

4 Bay Charging Unit

  • Provides charge for up to 4 each Li-Polymer 3.7V batteries, universal for all Series 9900 Wireless battery-powered modules
  • Built-in battery holders, NFPA compliant for fire/rescue market
  • DC input range - accepts between 5 to 15VDC
  • Individual multi-color LED indicators (4 each) provide visual status of charge state for each battery
  • Li-Polymer batteries include internal thermistor, allowing the charger to independently monitor the temperature of each battery via the charger's internal thermal monitoring circuit for safe, proper charging
  • 3-4 hour charge cycle provides full charge to depleted batteries, lasting over 24 operational hours between charges
  • Power supply cord kits (sold separately) available for 110VAC, 230VAC, 12VDC and 24VDC power sources
  • Includes permanent and portable mounting options via mounting brackets and/or rubber feet
  • Rugged design provides years of reliable service
  • Low-profile, space-saving enclosure permits installation flexibility

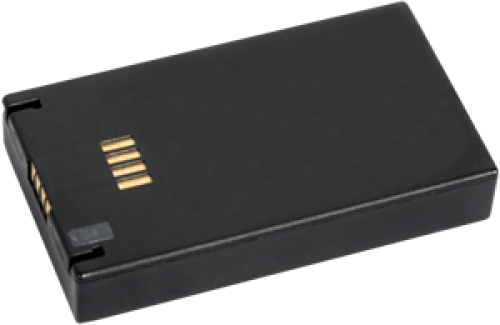

40688G-90

Spare Battery
  • Li-Polymer battery pack
  • 3.7V nominal voltage
  • 2260mAh nominal capacity
  • Used with all Belt Stations and Push-Back Gateway
  • Operates for 24 hours continual usage between charges
  • Charges from fully depleted state in 3-4 hours with A99-14CRG battery chargers
  • Internal thermistor allows charger to constantly monitor battery temperature to ensure
  • safe charging
