Bose A30 Cable Assembly

Bose A30 Cable Assembly

Brand: Bose

Product Code: 857642-XXXX
Availability: Call For Availability
Price (Incl GST): NZ$639.99
Price (Excl GST): NZ$556.51
Qty:
   - OR -

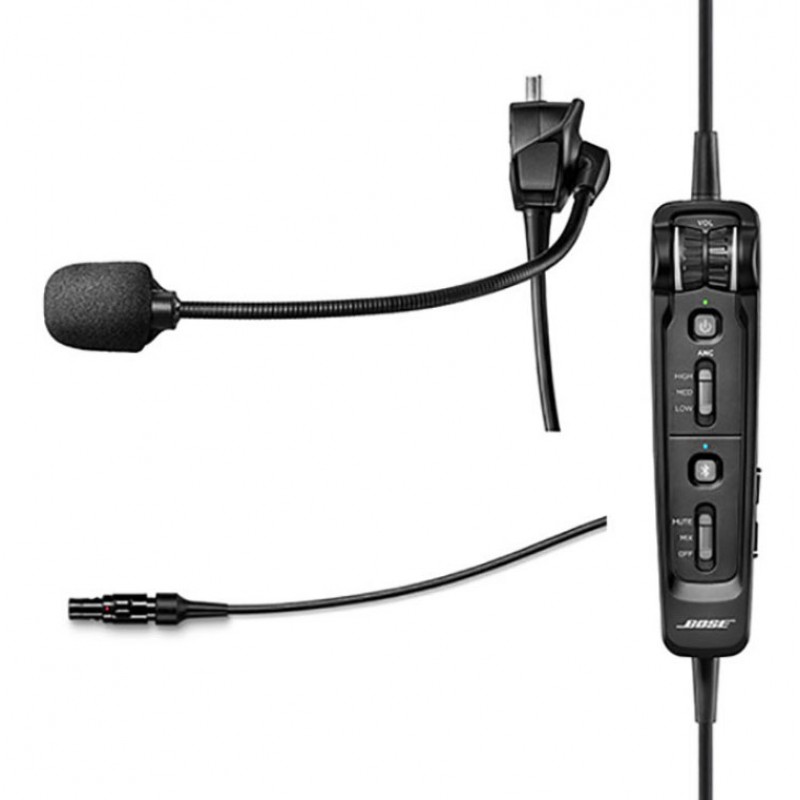

Bose A30 Cable Assembly

Enables you to change easily from one connector type to the other.

Includes everything from the microphone to the plug.

Part Number Power Source Mic Impedance Aircraft Connector Cable Style Bluetooth
857642-3140 1 FLEX HIGH LEMO STRAIGHT YES
857642-2140 FLEX HIGH LEMO STRAIGHT NO
857642-T140 1 FLEX HIGH LEMO COILED YES
857642-J140 FLEX HIGH LEMO SHORT YES
857642-H140 FLEX HIGH LEMO SHORT NO
857642-3120 2 BATTERY HIGH DUAL STRAIGHT YES
857642-2120 BATTERY HIGH DUAL STRAIGHT NO
857642-R120 BATTERY HIGH DUAL COILED NO
857642-3130 3 BATTERY HIGH U174 STRAIGHT YES
857642-2130 BATTERY HIGH U174 STRAIGHT NO
857642-T130 3 BATTERY HIGH U174 COILED YES
857642-R130 BATTERY HIGH U174 COILED NO
857642-3170 FLEX HIGH XLR5 STRAIGHT YES
857642-2170 FLEX HIGH XLR5 STRAIGHT NO
857642-2240 FLEX 5-OHM LEMO STRAIGHT NO
857642-2230 BATTERY 5-OHM U174 STRAIGHT NO
857642-R230 BATTERY 5-OHM U174 COILED NO
857642-2330 BATTERY 150-OHM U174 STRAIGHT NO
857642-3330 BATTERY 150-OHM U174 STRAIGHT NO

Power Source:  FLEX = Power from Aircraft with backup from batteries if installed.

Mic Impedance:  HIGH = G/A and Civilian Hleicopters, 5-Ohm and 150-Ohm are Military Specs and likely to have very long lead times (call to confirm).

Non Bluetooth cables are not stocked and likely to have long lead times (4 - 6 weeks)

6 Pin Circular Plug Versions, AKA 'Installed'

2 Standard Fixed Wing Version

3 Standard Helicopter Versions

Specify part number in the notes when ordering, send us an email or call us if you are unsure.
