Heads-Up Tech RDG250 LED Reading Lamp

Brand: Heads Up Technologies
Product Code: RDG250
Availability: Not For Web Sales

Price (Incl GST): NZ$1,432.63
Price (Excl GST): NZ$1,245.76

0 reviews | Write a review

Description Reviews (0) Downloads (1)

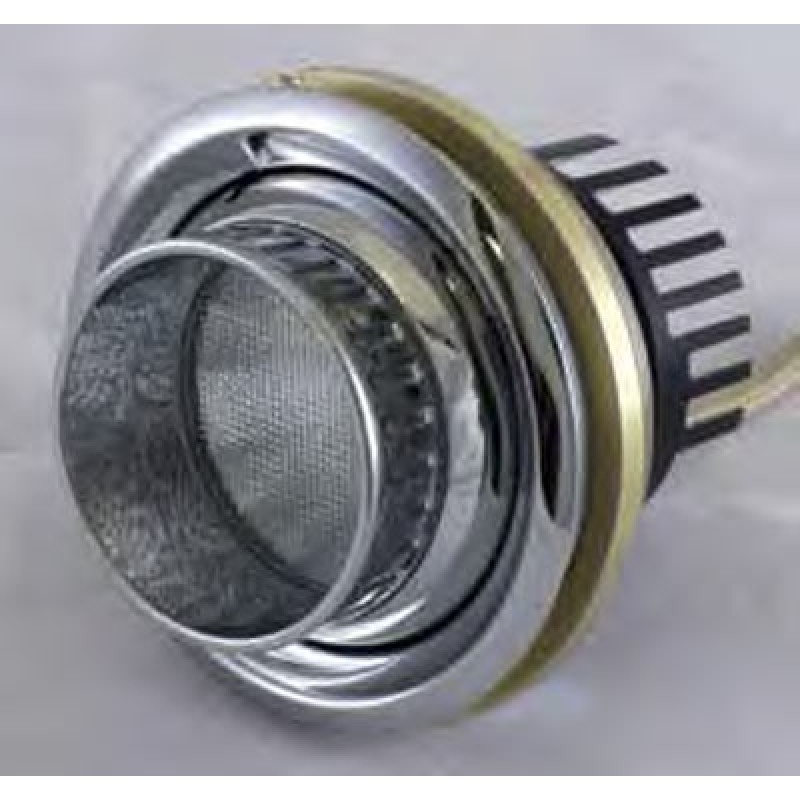

Heads-Up Tech RDG250 LED Reading Lamp

LED reading and table lights provide the right amount of light, where you want it. We offer a complete range of lighting solutions to fit anything from smaller cabins to the largest interior spaces.
You can choose from an array of compact designs, all of which provide exceptional thermal management to pull heat away from the electronics and extend the life of your investment.
These lightweight, dimmable, low-voltage reading and table lights are based on durable LED technology and deliver true color.
They also offer adjustable spot sizes and hundreds of plating options. To make a bold design statement, cool and warm colors in different brightness levels can be coordinated to complement your Heads Up cabin wash lighting systems.

Performance Benefits.

High brightness LEDs can generate more light per watt than incandescent or cold cathode parts, giving you more light for less power. These LED lights are fully dimmable from zero to full bright using Pulse Width Modulation techniques. the lighting system

controllers provide control interfaces to facilitate installation in a variety of situations.

Improved Reliability.

Our designs virtually eliminate failures associated with thermal stress. All designs have been through multiple rounds of HALT (highly accelerated life test) as a reliability enhancement tool. We also use industrial-grade LEDs, which offer significantly greater lifespan and performance at extreme temperatures than consumer-grade LEDs.

Next-Generation LEDs.

Not all LED solutions are created equal. At Heads Up, we work with leading LED manufacturers to bring you the latest LED technology, often before it is available in the general marketplace. Only the brightest, whitest, most ef-ficient and coolest-running LEDs make the cut.

Turn Key Solutions.

Coordinate your cabin lighting by including upwash/ downwash elements, accent lights, mounting brackets, power supplies, and connectors. We’ll work directly with your other sub-tier suppliers to ensure complete and correct integration. Upgrading to LED lighting is easier than you may think.

Specifications:
Electrical
Nominal Input Voltage	28 VDC
Input Current (Max Bright)	0.20 Amp
Physical
Weight	0.3 lbs (136 grams)
Width (OD)	3.00” (7.62cm)
Depth	1.24” (3.15cm)
PSM120 Controller	0.67”x2.20”x2.59” (1.70x5.59x6.58cm) Weight 0.35lbs (159 grams)
Environmental
Operating Temperature	5°~131°F (-15°~55°C)
Testing/Certification	14 CFR PART 21
Hardware - Environmental	RTCA DO-160E
Specifications subject to change without notice.
