Dynon Skyview Autopilot Controller

Dynon Skyview Autopilot Controller

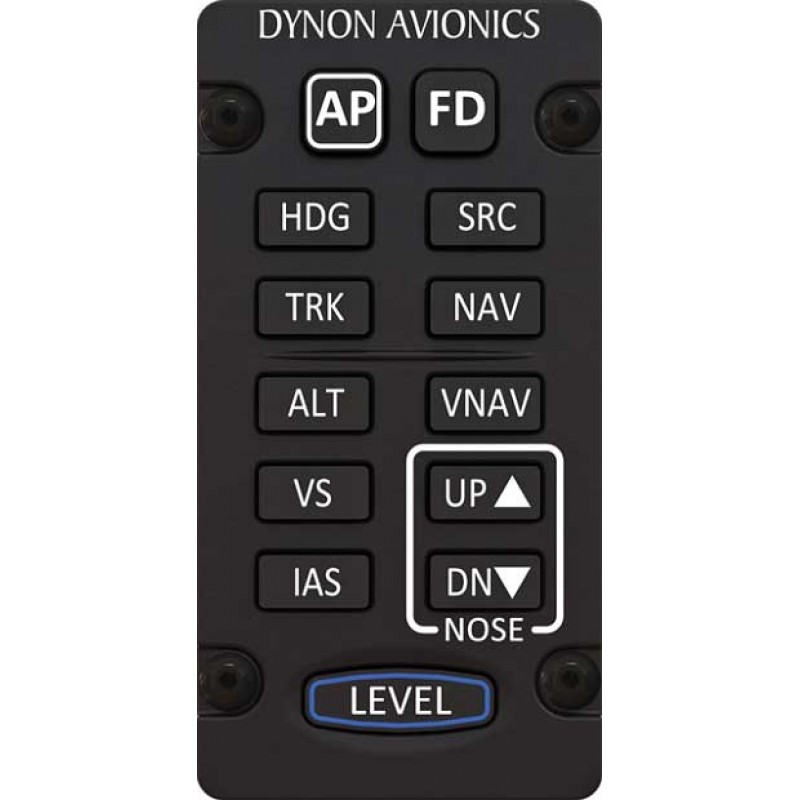

The Autopilot control panel allows full control of the SkyView approach-capable autopilot without touching a single button on the SkyView screen. Just reach up, touch the mode you want, and sit back while SkyView takes control. Innovative features like the LEVEL button are always there for you no matter what else you are doing with SkyView. All buttons are backlit and feature sharp tactile feedback when pressed.

Trim ControllerThe Autopilot module is also a fully featured digital dual axis trim controller. It can control your electric pitch and/or roll trim motors, replacing any relay decks that may be in the plane. It also has the ability to slow down the speed of trim as you fly faster so that your trim sensitivity is the same at all airspeeds ("speed scheduling" in jet-speak). More than a simple two speed controller, this feature is fully proportional and can be easily adjusted right in the SkyView setup menus.  Controlling trim in your aircraft is serious, and Dynon takes safety here to the next level. The trim controller works even if SkyView is offline, with redundant power inputs. Trim is protected from running away due to stuck buttons, the outputs are protected from shorts, and the pilot has priority over co-pilot inputs. Use of the trim controller is optional.

*****NEWSFLASH*****
AUTO TRIM.  The SkyView Autopilot can now automatically keep the aircraft in trim while under autopilot control, eliminating the need for the pilot to manually actuate their trim to satisfy the Autopilot's built-in trim advice. This feature requires that the aircraft has an SV-AP-PANEL and is using its integrated trim controller for electric trim servo actuation.  Auto-Trim can be configured on pitch and/or roll axes.

Designed for YOUR Panel: The SV-AP-PANEL is available in both horizontal and vertical SV-COM-25C versions so that you can craft your perfect panel. The control panel is only 1.27” deep.  Use with SV-KNOB-PANEL Match with the knob control panel which has dedicated knobs for Altimeter Setting (Baro), HDG/TRK bug, and ALT bug.  SkyView supports two SV-AP-PANELS.

Features

• AP on-off
• Flight Director on-off
• HDG hold
• TRK hold
• ALT hold
• VS hold
• IAS hold
• Nose up-down control for vertical modes
• VNAV control, approache sequencing
• TRIM:
• Allows two set of trim buttons
• Auto airspeed sensitive trim speed control
