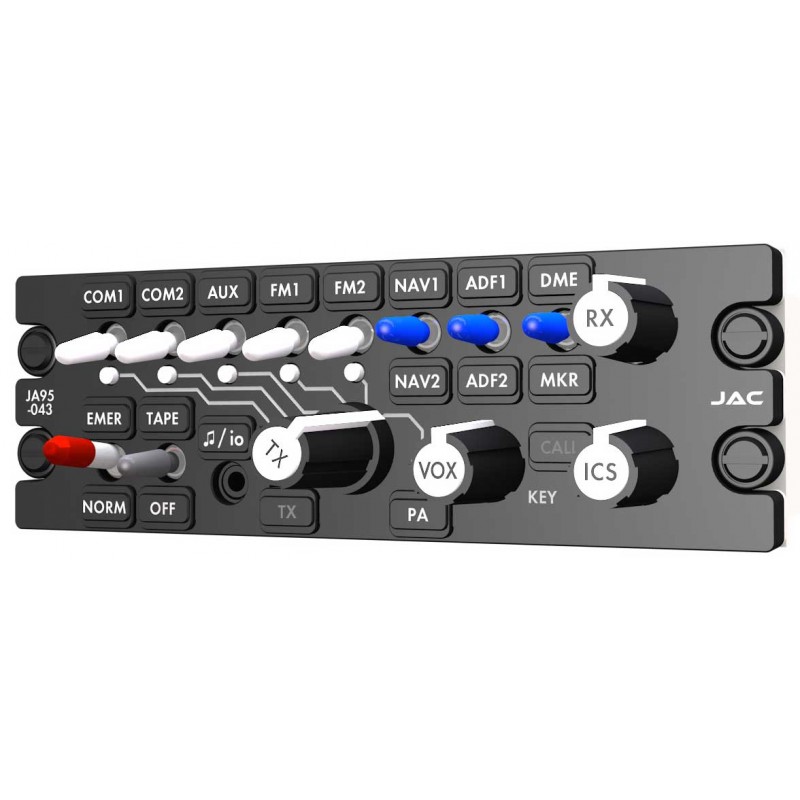

Jupiter JA95-043 Audio Panel

Jupiter JA95-043 Audio Panel

A compact, lightweight Audio Panel that incorporates the latest technology, and is fully compatible with the current industry standard interconnect.



FEATURES:

•     6 users
•     Field configurable settings
•     Field replaceable legends
•     Stuck microphone time-out
•     Adjustable output and input levels
•     Balanced ICS, CVR, Rx Comp. & trans mit mic. outputs
•     Configurable audio alert messages
•     Front panel music input
•     5, 14 and 28 Vdc lighting voltage selection
•     Music muting
•     Duplex mode transmission for telephone operation
•     5.48 inches [139mm] depth behind panel (not including connectors)
•     Individual mic. gating
•     Tx capability for pilot, co-pilot
•     Transmit select annunciators
•     Connector pin compatible with industry standard
