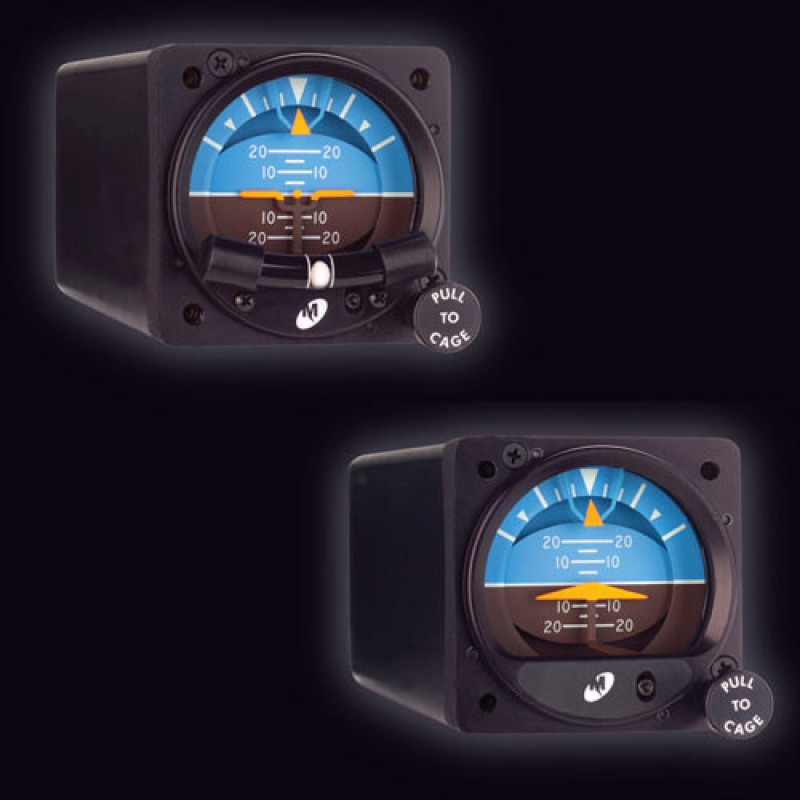

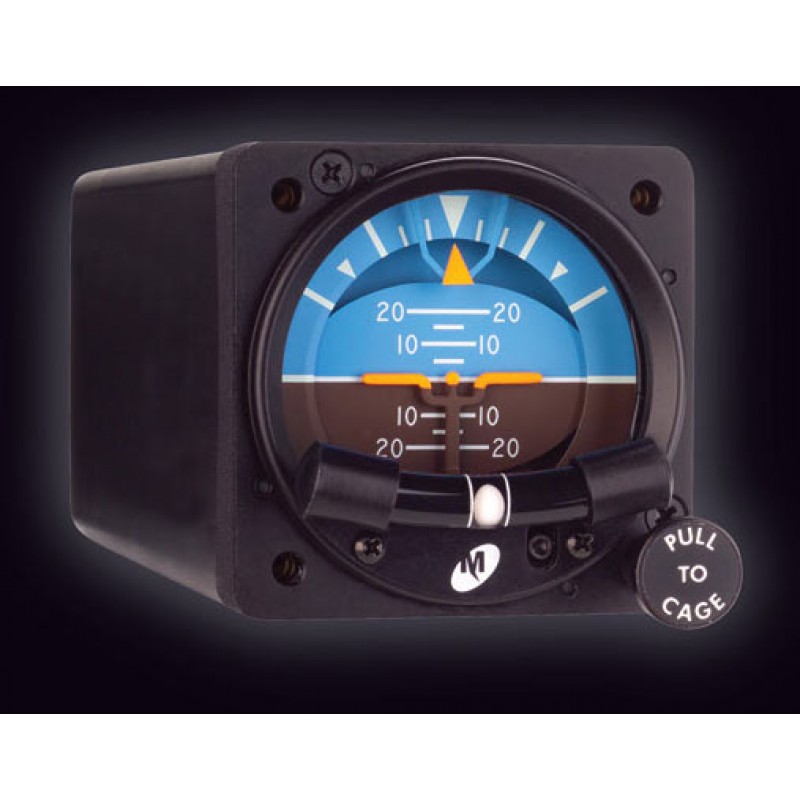

Mid Continent 4200 series 2 inch A/H

Mid Continent 4200 series 2 inch A/H

FEATURES:

• Best value 2-inch electric attitude indicator available
• A safe alternative to unreliable vacuum systems
• Single 4-pin connector installation
• Perfect for use as a standby artificial horizon in fixed-wing aircraft and helicopters
• Versions available to match existing instrument/EFIS displays
• 10–32 volt DC operation for use in 14 and 28 volt aircraft
• Standard equipment on many OEM aircraft
• Anti-reflective glass enhances visibility and reduces fatigue
• Long-life LED lighting, user selectable to 5, 14 or 28 volt input

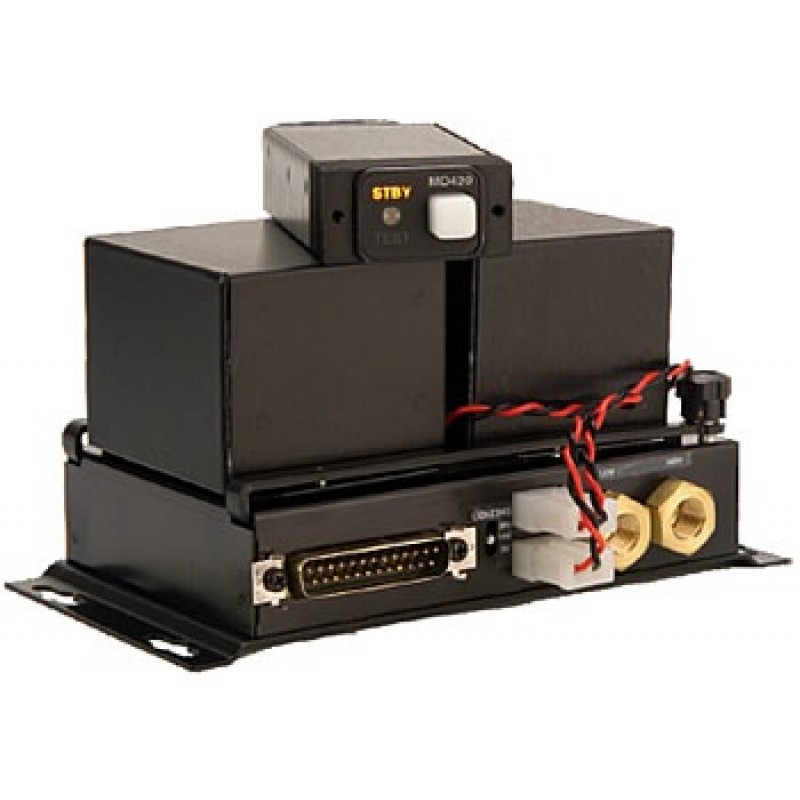

• Can be used with optional MD420 Emergency Power Supply to provide up to one hour of emergency attitude reference during an electrical failure
• Combine with a Mid-Continent MD15 Altimeter and MD25 Airspeed Indicator for a complete standby package designed for tight panel applications
• Approved to FAA TSO-C4c and RTCA/DO-160D and E certified

Typical Panel Angles:

• Fixed Wing
  • Usually 0º
• Helicopters
  • Bell 5º
  • Eurocopter 11º
  • Hughes 5º
  • Robinson 11º

PANELT TILT ANGLE IS IMPORTANT.   PLEASE CHECK YOUR PANEL ANGLE BEFORE ORDERING.
Although we can adjust tilt angles afterwards, it is costly and we will charge you.

If you are unsure about your panel angle please call us and we can talk you through how to check it, it is not hard.  The guide above is just an indication, many helicopter manufacturers vary angles from model to model.
