Sandel SN3500 HSI / PND

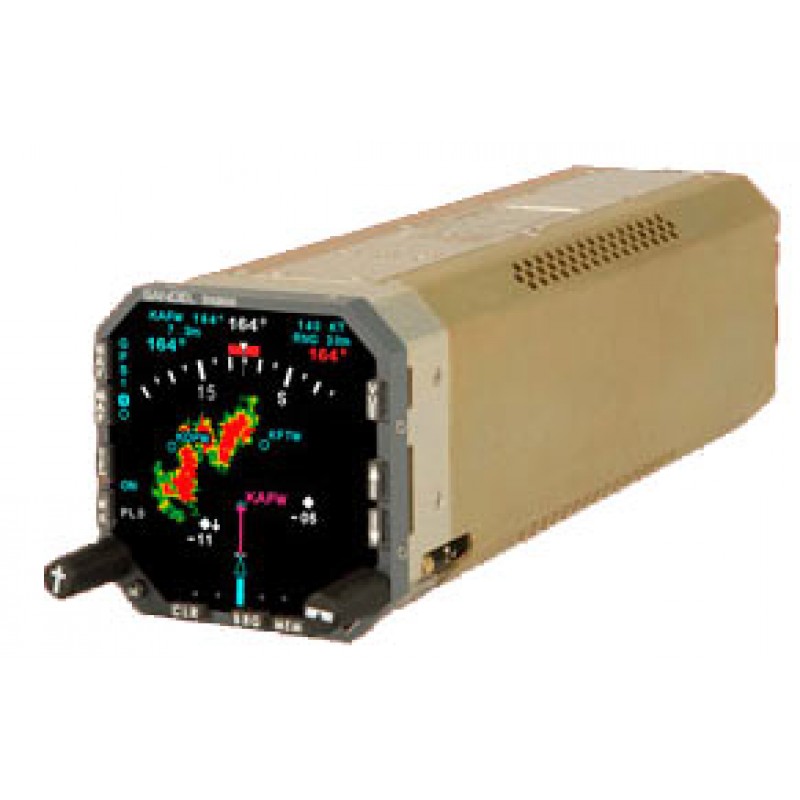

Compact and reliable, the SN3500 Primary Navigation Display is a sunlight readable, ultra-wide-angle LED backlit display which combines advanced navigation capabilities with a full range of safety functions. Improved situational awareness by presenting compass, map, flight plan and RMI data in a bright, crisp, easy-to-read format. Available with night vision option as well.

Incorporating the equivalent of a four-inch screen in a three-inch instrument, the SN3500 improves situational awareness by presenting compass, map, flight plan and RMI data in a bright, crisp, easy-to-read format. Now with LED backlighting, our SN3500 is a proven and reliable upgrade. And as a drop-in replacement for your current 3-inch HSI, the SN3500 is both an easy and affordable retrofit for your aircraft or rotorcraft.

Reversionary Attitude (option) for the SN3500 and SN4500 Primary Navigation Displays. With this new safety feature, you can call up an attitude display on the SN3500/SN4500 at the flip of a switch while retaining heading and navigational information. Attitude information is provided by Sandel’s solid-state SG102 AHRS.


Operational & Functional Benefits:
  • Bright, high-resolution, sunlight-readable LED-backlit display
  • True 180-degree left-to-right/up-down viewing angle
  • Upgradeable system combines navigation with such safety options such as Weather information from L-3 Stormscope® or optional WSI InFlight® weather
  • 10,000 hour MTBF
  • Internal Jeppesen NavData™ database
  • Full-color moving map Nav
  • TSO'd and STC approved for use as a primary heading and Nav display
  • Vibration-resistant version optional for fixed-wing and helicopter operations
  • Optional TACAN interface shows bearing and distance from one or two sources. Compatible with ARINC 429, ARINC 419 or XYZ Synchro output from TACAN receivers.
  • NVIS option available

Model/Version Number:



  • 90165-C  SN3500-002 Black
  • 90166-C  SN3500-003 Gray
  • 90167-C  SN3500-004 Black, High Vibration
  • 90168-C  SN3500-005 Gray, High Vibration
  • 90231-A  SN3500-010N Black, High Vibration NVIS, Class B
  • 90232-A  SN3500-011N Gray, High Vibration NVIS, Class B
