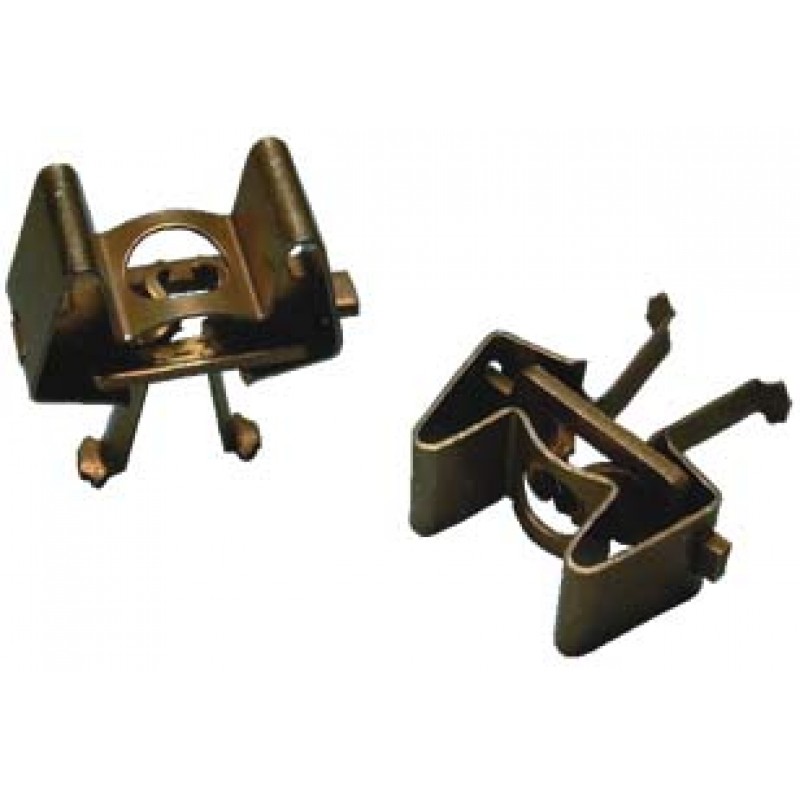

Mil Spec MS33737 Clip Nut

Mil Spec MS33737 Clip Nut

AKA Tinnerman Nut, Spring Clip Nut, Instrument Mounting Nut or Grasshopper Nut.  These are very useful devices for installing instruments or blanking plates where access is limited.

We carry a range of common sizes (-11C through -16C) in stock.  Other sizes (including 4-40 screw sizes can be ordered in)

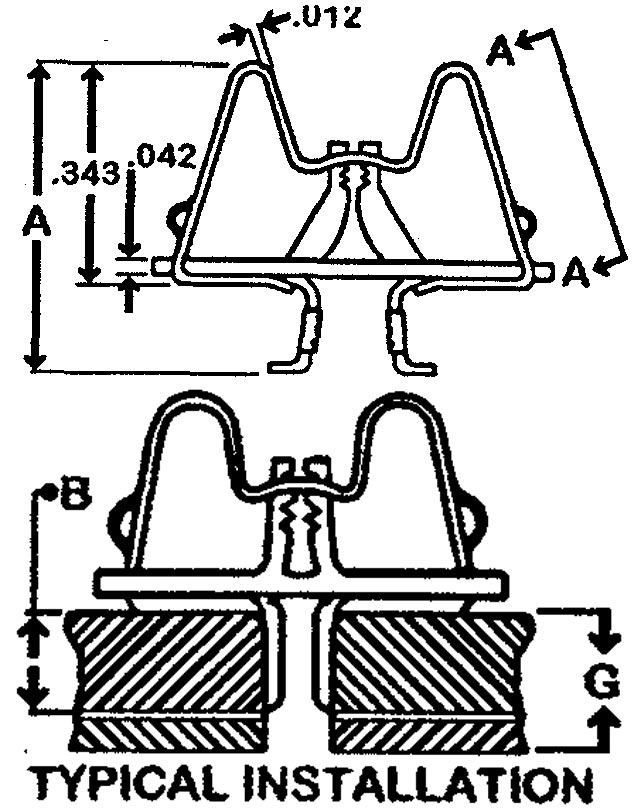

Mil Spec Part Number	Tinnerman Part Number	NAS Part Number	Overal Height 'A' (Inch)	Panel Thickness 'B' (Inch)
MS33737-9C	A8938-632-493	NAS487-13	0.438	0.062
MS33737-10C	A8939-632-24J	NAS487-14	0.469	0.093
MS33737-11C	A6938-632-24J	NAS487-15	0.500	0.125
MS33737-12C	A8940-632-24J	NAS487-16	0.562	0.187
MS33737-13C	A8941-632-24J	NAS487-17	0.625	0.250
MS33737-14C	A8942-632-24J	NAS487-18	0.688	0.312
MS33737-15C	A8943-632-24J	NAS487-20	0.750	0.375
MS33737-16C	A8944-632-24J	NAS487-21	0.750	0.375+

















    C = Cadmium, Screw size = 6-32.
