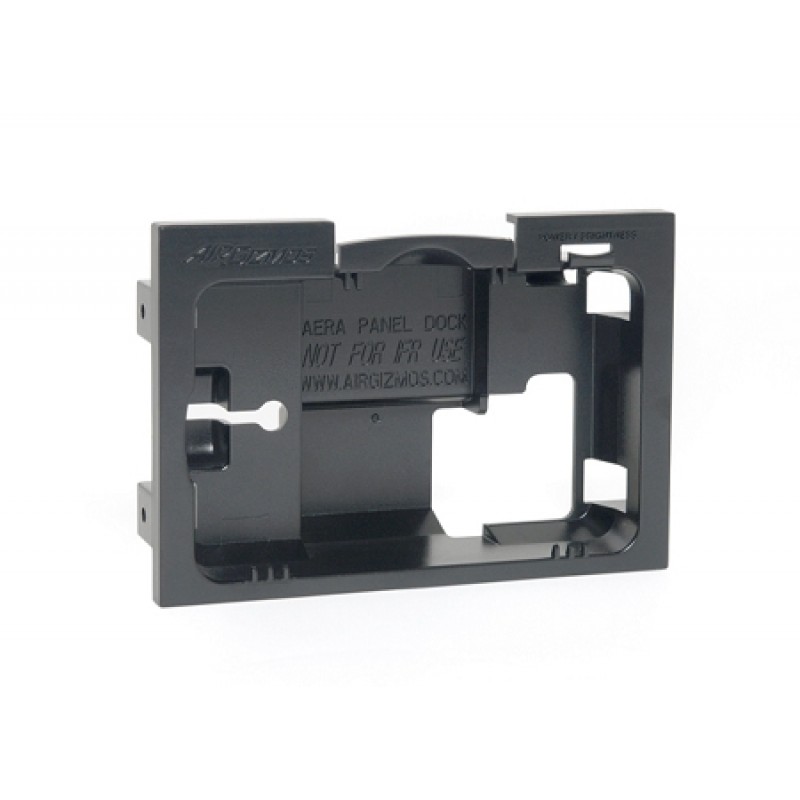

Air Gizmos Garmin Aera 500 Panel Mount Bracket

The Panel Dock™ is designed to fit the Garmin Aera 500, 510, 55 and 560 handheld GPS units. The GPS is held firmly in place, but can be easily removed by pulling the release tab.



The Panel Dock™ is designed to fit in a standard 6.25" avionics stack, but it can also be flush-mounted anywhere else in the panel. Air Gizmo have worked hard to make it look like it belongs in a panel.

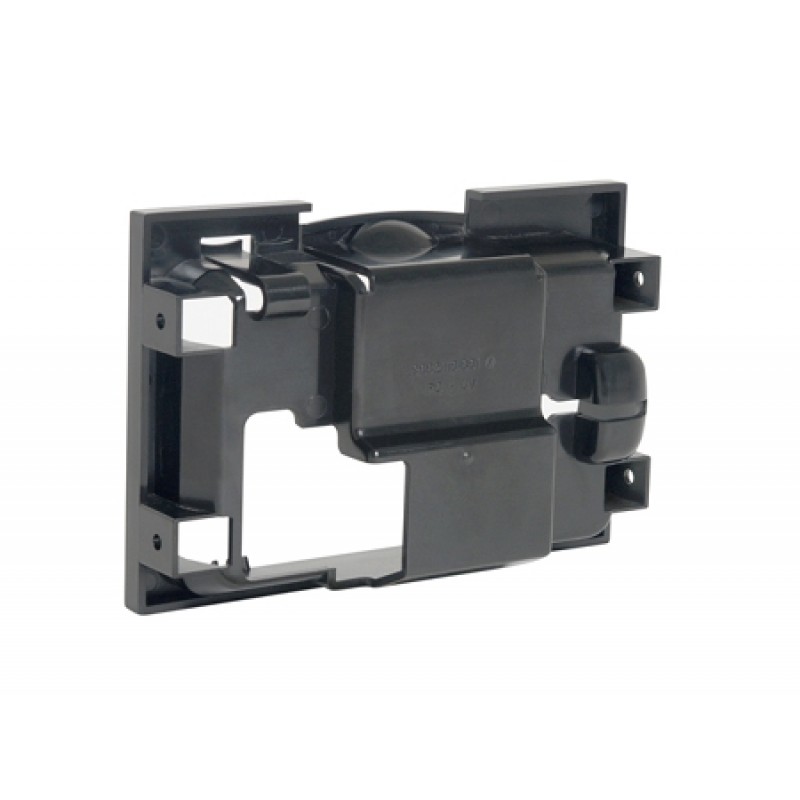

The antenna and power cables slide through prefabricated "keyholes" in the back of the unit, which keeps the connectors from slipping back into the panel when the unit is removed.



PD16 Aera PMB
