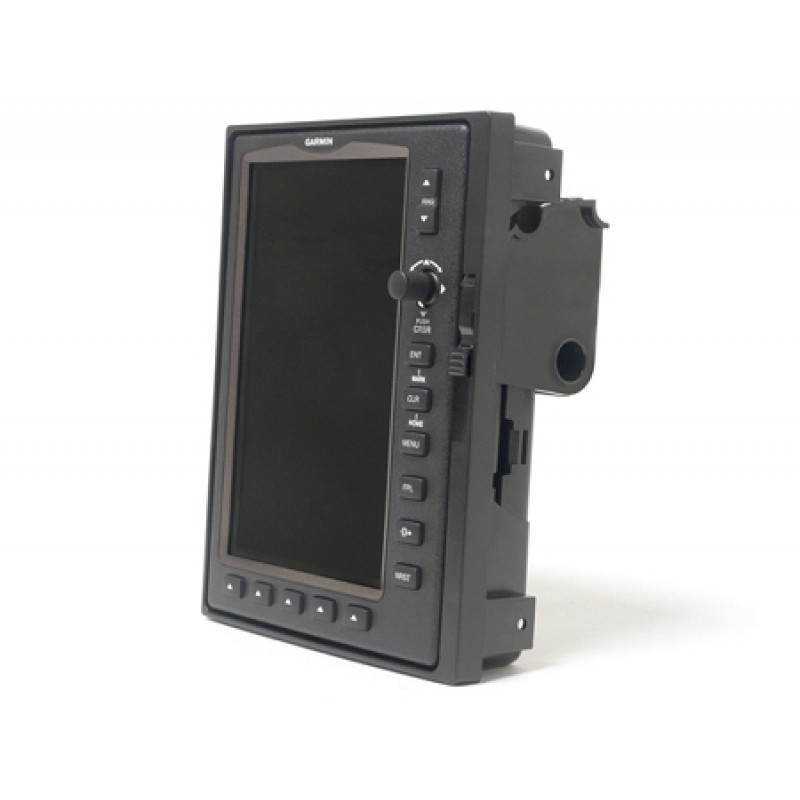

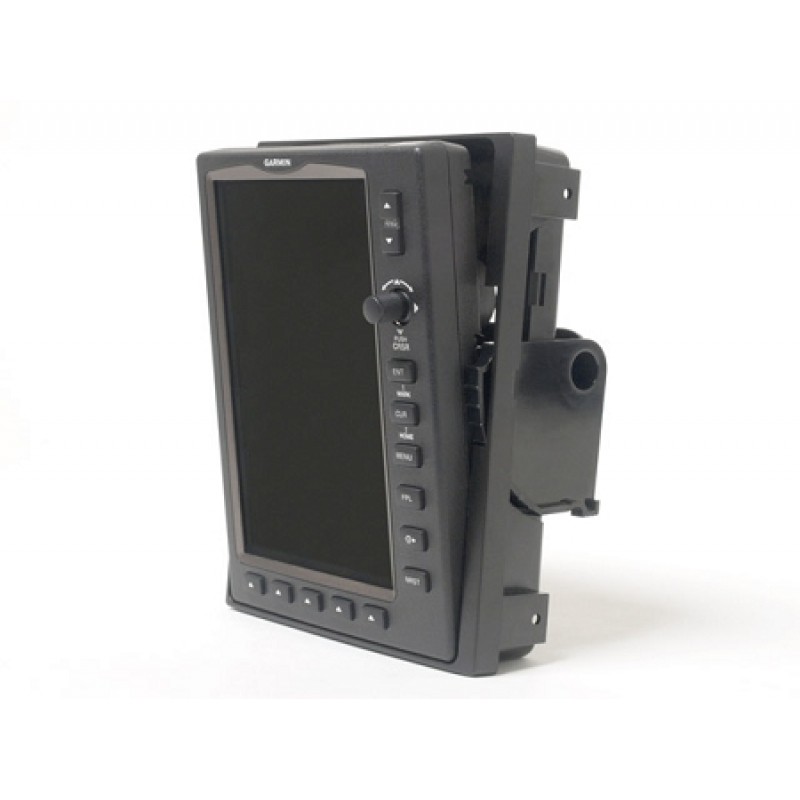

Air Gizmos GPS695 Panel Mount Bracket

The guys at Air Gizmos are as passionate about the Garmin GPS695 as we are.  Here is their description of the engineering chalenges they faced designing a panel mount dock to suit:



"First and foremost we were committed to keeping the "footprint" of the Panel Dock to an absolute minimum. The 696 is already 5.7" wide by 7.7" high. So our tradition of adding a latch to the top or side of the Panel Dock had to be changed. We absolutely had to stay within the 6.25" width of a standard radio stack, and we really wanted the overall height to be as short as possible. Our solution is a latching mechanism that is virtually invisible from the front of the dock and does not protrude beyond the overall footprint of 6.25" by 8".

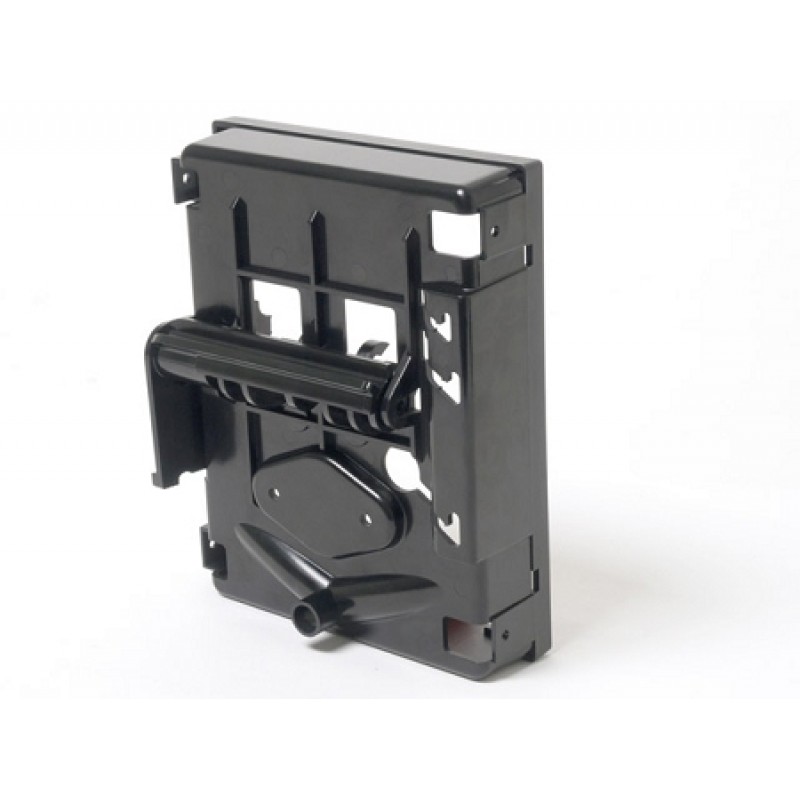

Next, we needed to provide a way to manage the cables that connect to the 696. As with our other Panel Docks, we have provided keyholes that capture the cables and keep them from falling into the panel. The 696 is installed into the dock by resting the bottom of the GPS on the Panel Dock and attaching the cables. Then the GPS is snapped into the Panel Dock and finally it is latched in place using the latching wheel located on the right side of the dock.

As with our other Panel Dock products, the 695/696 Panel Dock allows you to securely mount your GPS in your panel while allowing you to remove the GPS from the plane quickly and easily."

The result is a streamlined and professional installation that adds to the functionality of the GPS.



The optional angle adaptor may help with viewing the screen if you need to mount it on the other side of the panel.

A low profile audio adaptor cable is available if you want to interface the 695 to your audio panel.
